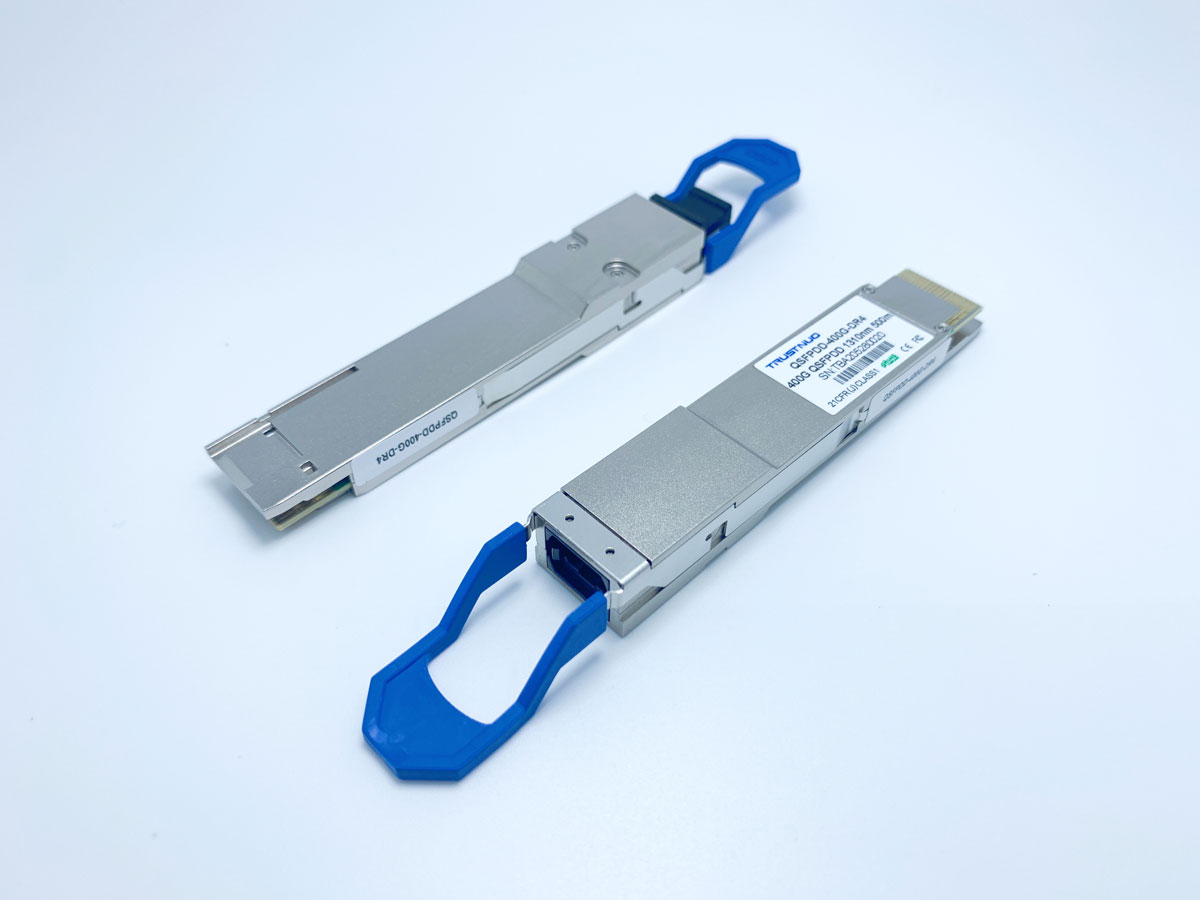

QSFPDD-400G-DR4

P/N : QSFPDD-400G-DR4

● Compliant with IEEE Std 802.3bs
● Compliant with 400G-DR4 optical specifications

● Compliant with QSFP-DD MSA

● Compliant with CMIS4.0 Management interface specifications

● 8x53.125Gb/s electrical interface (400GAUI-8)

● Up to 0.5km transmission on single mode fiber (SMF) with FEC

● Single +3.3V power supply

● Case temperature range: 0 ~ +70℃

● Maximum power consumption 9.5W

● RoHS complaint

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

1. It is mainly used in 400G Ethernet, Data Center Interconnect, Infiniband Interconnect, Enterprise Networking.
2. Wavelength 1310nm, support up to 500 meters
3. It adopts 8*50Gbps PAM4, realizing 400G transmission.
4. It can save fiber cost and reduce link loss.
5. Temperature range is 0℃~70℃
6. It adopts MTP/MPO-12 interface, supports DDM funtion.

Features

● Compliant with IEEE Std 802.3bs
● Compliant with 400G-DR4 optical specifications

● Compliant with QSFP-DD MSA

● Compliant with CMIS4.0 Management interface specifications

● 8x53.125Gb/s electrical interface (400GAUI-8)

● Up to 0.5km transmission on single mode fiber (SMF) with FEC

● Single +3.3V power supply

● Case temperature range: 0 ~ +70℃

● Maximum power consumption 9.5W

● RoHS complaint

Parameter

400G QSFPDD Optical Transceivers
Part Number	QSFPDD-400G-DR4
Trustnuo Part Number	TNDD13AXM-CD500
DESCRIPTION	QSFPDD 400G 500M
Data Rate (Mbps)	400G
Wavelength (nm)	1310
Distance	500M
Optical Power (dBm)	-2.9~+4
Source	DFB
Sensitivity (dBm)	-5.9~+4
Receiver	PIN
Connector type	MTP/MPO-12
