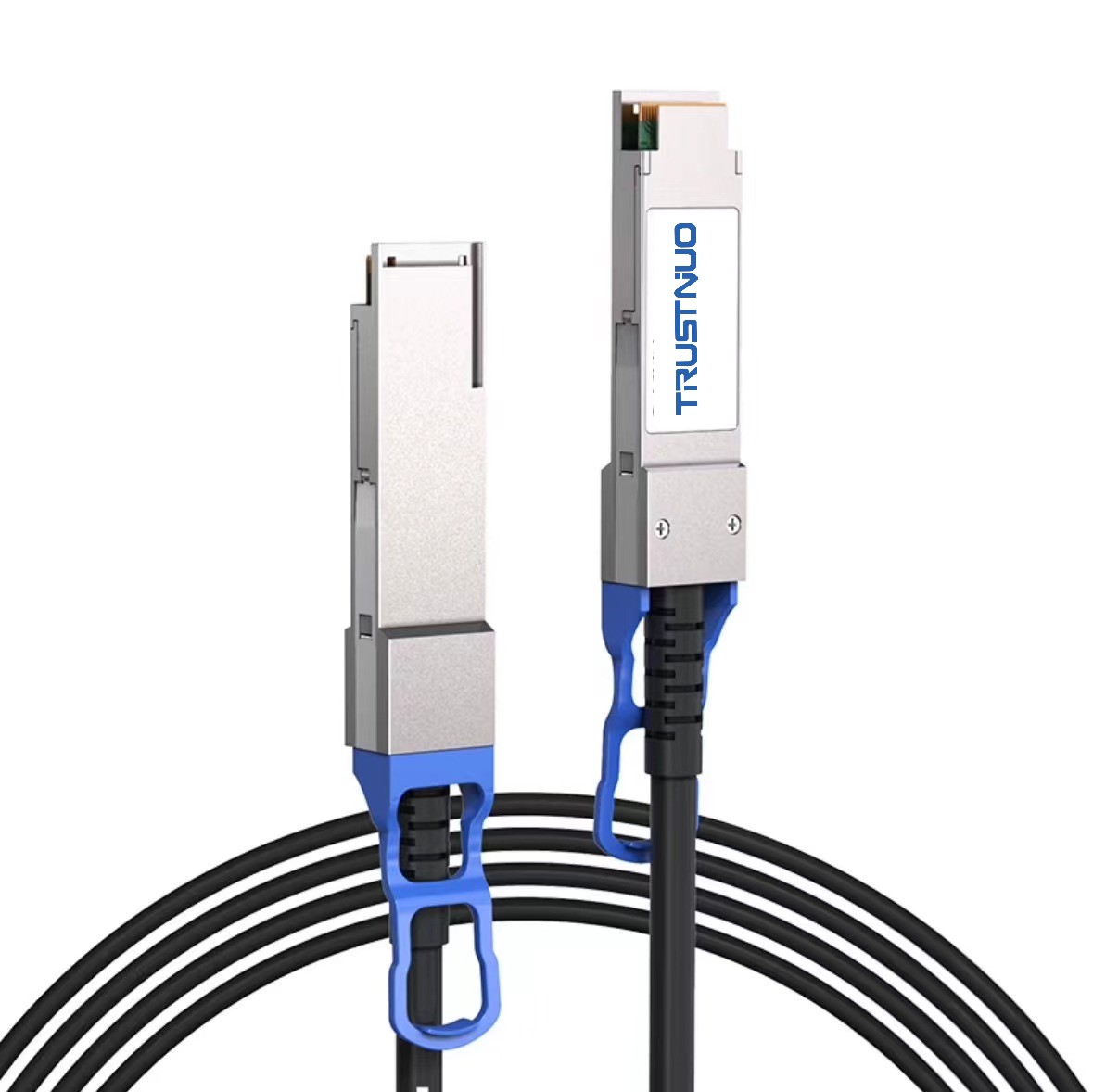

200G QSFP56 to QSFP56 DAC

P/N : TDQ56X1Q56X-003
1. Compatible with IEEE 802.3bj and IEEE 802.3cd
2. Supports aggregate data rates of 200Gbps(PAM4)
3. Optimized construction to minimize insertion loss and crosstalk
4. Backward compatible with existing QSFP+ connectors and cages
5. Pull-to-release slide latch design
6. 26AWG and 30AWG cable
7. Operating temperature: 0~70
8. Straight and break out assembly configurations available
9. Customized cable braid termination limits EMI radiation
10. Customizable EEPROM mapping for cable signature
11. RoHS Compliant

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

QSFP56 passive copper cable assembly feature eight differential copper pairs, providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel, and meets 200G Ethernet and InfiniBand  Data Rate(EDR) requirements. Available in 26AWG and 30AWG wire gauges, this 200G copper cable assembly features low insertion loss and low crosstalk.

Features

1. Compatible with IEEE 802.3bj and IEEE 802.3cd
2. Supports aggregate data rates of 200Gbps(PAM4)
3. Optimized construction to minimize insertion loss and crosstalk
4. Backward compatible with existing QSFP+ connectors and cages
5. Pull-to-release slide latch design
6. 26AWG and 30AWG cable
7. Operating temperature: 0~70
8. Straight and break out assembly configurations available
9. Customized cable braid termination limits EMI radiation
10. Customizable EEPROM mapping for cable signature
11. RoHS Compliant
