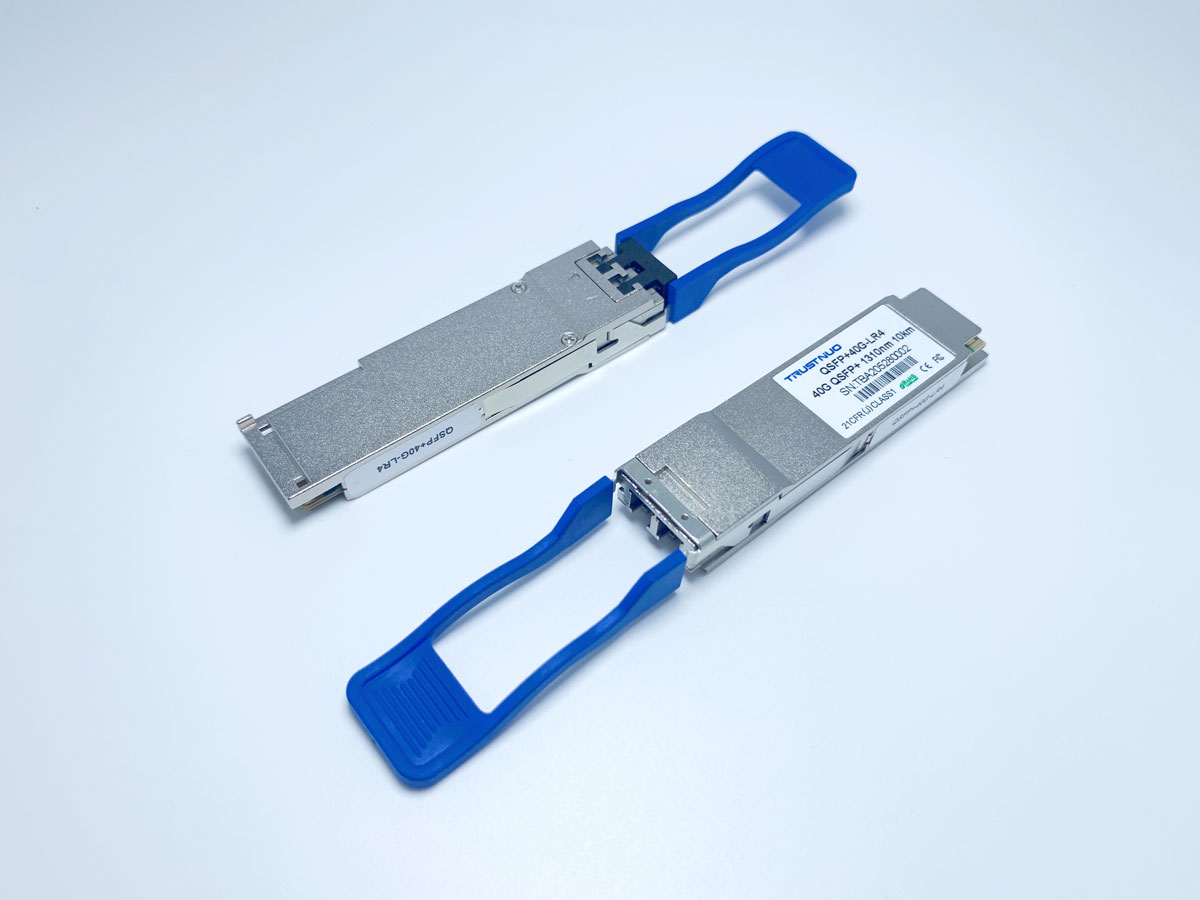

QSFP+40G-LR4

QSFP+40G-LR4

Products > Transceiver > 40G Single-mode >

QSFP+40G-LR4

P/N : QSFP+40G-LR4

● QSFP+MSA compliant
● Compliant to IEEE 802.3bm 40GBASE-LR4
● Four-channel full-duplex transceiver module
● Hot pluggable,MSA-compliant QSFP+form factor
● Operating case temperature: 0 to 70℃
● Single 3.3V power supply
● Maximum power consumption 3.5W
● Duplex LC optical connector
● RoHS-6 compliant

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

1. It is mainly used in 40G Ethernet, Data Center.
2. It can transmit up to 10km.
3. It adopts 4*10G 1310nm DFB CWDM.
4. Temperature range is 0℃~70℃
5. It adopts Dual LC interface, supports DDM funtion.

Features

● QSFP+MSA compliant
● Compliant to IEEE 802.3bm 40GBASE-LR4
● Four-channel full-duplex transceiver module
● Hot pluggable,MSA-compliant QSFP+form factor
● Operating case temperature: 0 to 70℃
● Single 3.3V power supply
● Maximum power consumption 3.5W
● Duplex LC optical connector
● RoHS-6 compliant

Parameter

QSFP+ 40G Optical Transceivers
Part Number	QSFP+40G-LR4
Trustnuo Part Number	TNQS314XL-CD104
DESCRIPTION	QSFP+ 40G Single-Mode Dual-fiber 10KM
Data Rate (Mbps)	40G
Wavelength (nm)	1310nm
Distance	10KM
Optical Power (dBm)	-7~2.3
Source	DFB CWDM
Sensitivity (dBm)	<-11.5
Receiver	PIN
Connector type	LC

Download

Datasheet-QSFP+_40G_LR4
