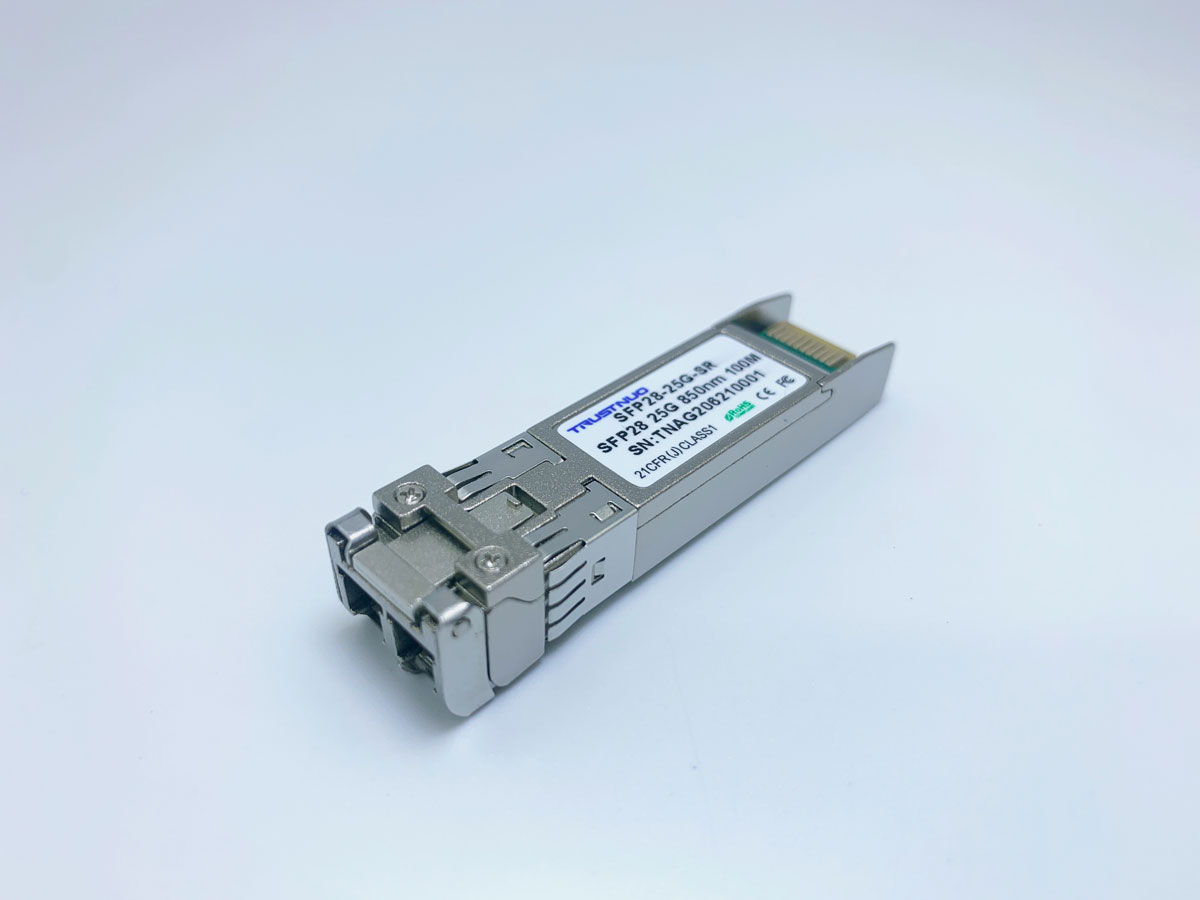

SFP28-25G-SR

SFP28-25G-SR

Products > Transceiver > 25G Multi-mode >

SFP28-25G-SR

P/N : SFP28-25G-SR

● Supports up to 25.78Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP28 footprint
● 850nm VCSEL transmitter, PIN photo-detector
● Distance up to 100m @50 / 125 um OM4
● Distance up to 70m @50 / 125 um OM3
● Built-in dual CDR
● Low power consumption, < 1.2W
● Digital Diagnostic Monitor Interface
● Compliant with SFP28 Specification SFF-8402e
● Electrical interface compliant to SFF-8431
● Operating case temperature:
Commerical:0~70°C

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

The SFP28 25G SR adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3).

Features

● Supports up to 25.78Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP28 footprint
● 850nm VCSEL transmitter, PIN photo-detector
● Distance up to 100m @50 / 125 um OM4
● Distance up to 70m @50 / 125 um OM3
● Built-in dual CDR
● Low power consumption, < 1.2W
● Digital Diagnostic Monitor Interface
● Compliant with SFP28 Specification SFF-8402e
● Electrical interface compliant to SFF-8431
● Operating case temperature:
Commerical:0~70°C

Parameter

25G Optical Transceivers
Part Number	SFP28-25G-SR
Trustnuo Part Number	TNSP852XL-CD100
DESCRIPTION	25G SFP28 Multi-Mode Dual-fiber 100M
Data Rate (Mbps)	25G
Wavelength (nm)	850nm
Distance	100m
Optical Power (dBm)	8.4~2.4
Source	VCSEL
Sensitivity (dBm)	<-11
Receiver	PIN
Connector type	LC

Download

Datasheet-SFP28 25G SR
