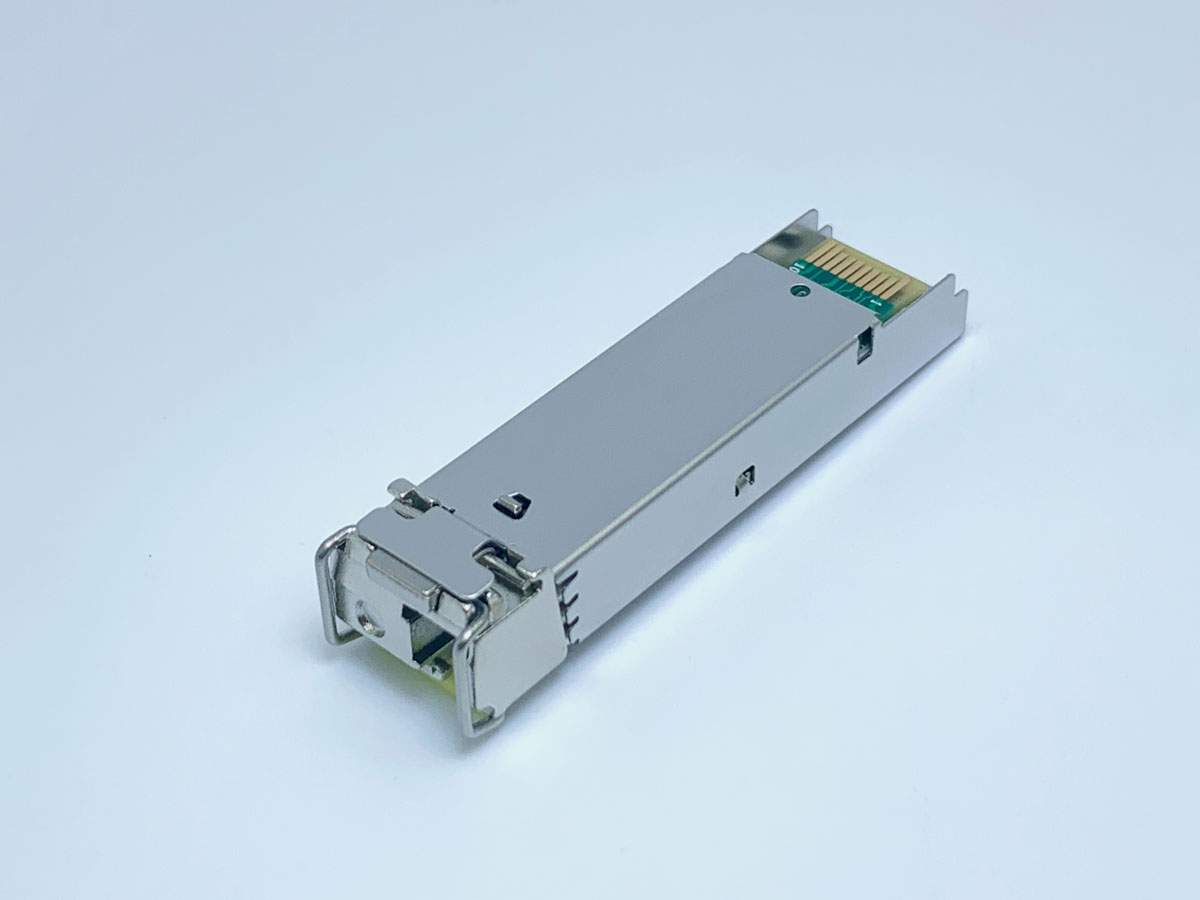

P/N : GLC-BX-20-D 1G BiDi

● Supports 1.25Gbps/1.0625Gbps bit rates
● Bi-Directional LC connector
● Hot pluggable SFP footprint
● 1310nm FP laser and1550nm PIN photo detector
● 1550nm DFB laser and 1310nm PIN photo detector
● Applicable for 20Km SMF connection
● Low power consumption, < 0.8W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical: 0 to 70 °C     Industrial: -40 to 85 °C

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

1. It is mainly used in 1.25G Ethernet.
2. It can transmit up to 20km.
3. It adopts1310nm FP laser and1550nm PIN photo detector, 1550nm DFB laser and 1310nm PIN photo detector.
4. Temperature range is Commerical: 0℃~70℃, Industrial: -40 to 85 °C
5. It adopts Bi-Directional LC connector, supports DDM funtion.

Features

● Supports 1.25Gbps/1.0625Gbps bit rates
● Bi-Directional LC connector
● Hot pluggable SFP footprint
● 1310nm FP laser and1550nm PIN photo detector
● 1550nm DFB laser and 1310nm PIN photo detector
● Applicable for 20Km SMF connection
● Low power consumption, < 0.8W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical: 0 to 70 °C     Industrial: -40 to 85 °C

Parameter

SFP BIDI Optical Transceivers
Part Number	GLC-BX-20-D
Trustnuo Part Number	TNSB5312L-CD204
DESCRIPTION	1G Single-Mode Single-fiber BiDi T1550/R1310 20KM
Data Rate (Mbps)	1250
Wavelength (nm)	TX1550/RX1310
Distance	20KM
Optical Power (dBm)	-10~-3
Source	DFB
Sensitivity (dBm)	<-22
Receiver	PIN
Connector type	LC/SC

Download

Datasheet_SFP BIDI_1.25G_1550nm_1310_20Km
