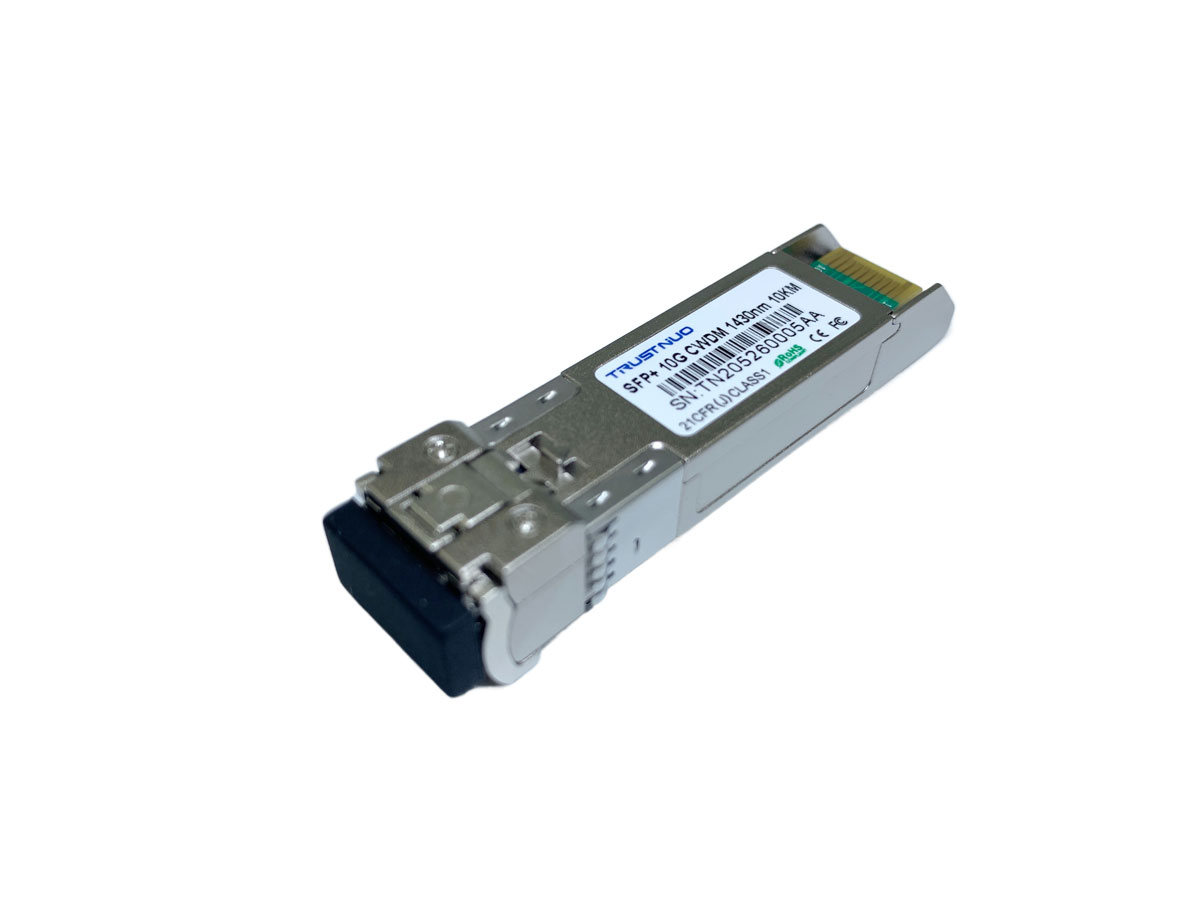

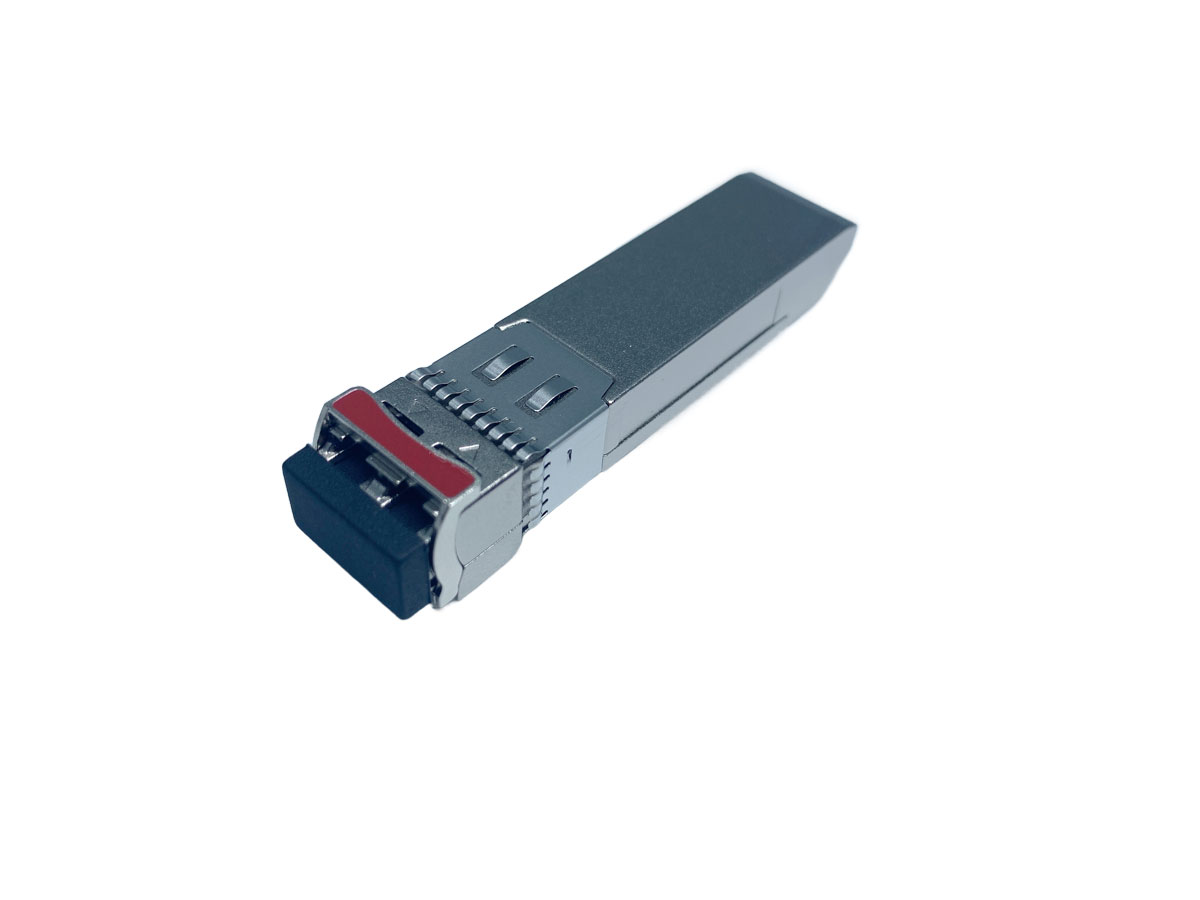

CWDM-SFP-1430-10

CWDM-SFP-1430-10

Products > Transceiver > 10G CWDM/DWDM >

CWDM-SFP-1430-10

P/N : CWDM-SFP-1430-10

● Supports 9.95 to 11.5Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption < 1W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature: Commerical: 0 to 70 °C Industrial: -40 to 85 °C

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

1. The CWDM optical module has 18 channel wavelengths (1270-1610nm), and each channel has a wavelength interval of 20nm. The color of the pull ring varies with the wavelength.
2. This solution can effectively improve the utilization rate of optical fiber resources, saving optical fiber resources.
3. Low cost WDM transmission technology for metropolitan area network access layer, suitable for telecom field.

Features

● Supports 9.95 to 11.5Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption < 1W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature: Commerical: 0 to 70 °C Industrial: -40 to 85 °C

Parameter

10G SFP+ CWDM Optical Transceivers
Part Number	CWDM-SFP-1430-10
Trustnuo Part Number	TNSCXX1XL-CD104 (XX: 1350/1370/1390/1410/1430/1450nm)
DESCRIPTION	10G CWDM 10KM
Data Rate (Mbps)	10G
Wavelength (nm)	1350~1450
Distance	10KM
Optical Power (dBm)	-3~+5
Source	CWDM DFB
Sensitivity (dBm)	<-14.4
Receiver	PIN
Connector type	LC/PC
