Overview

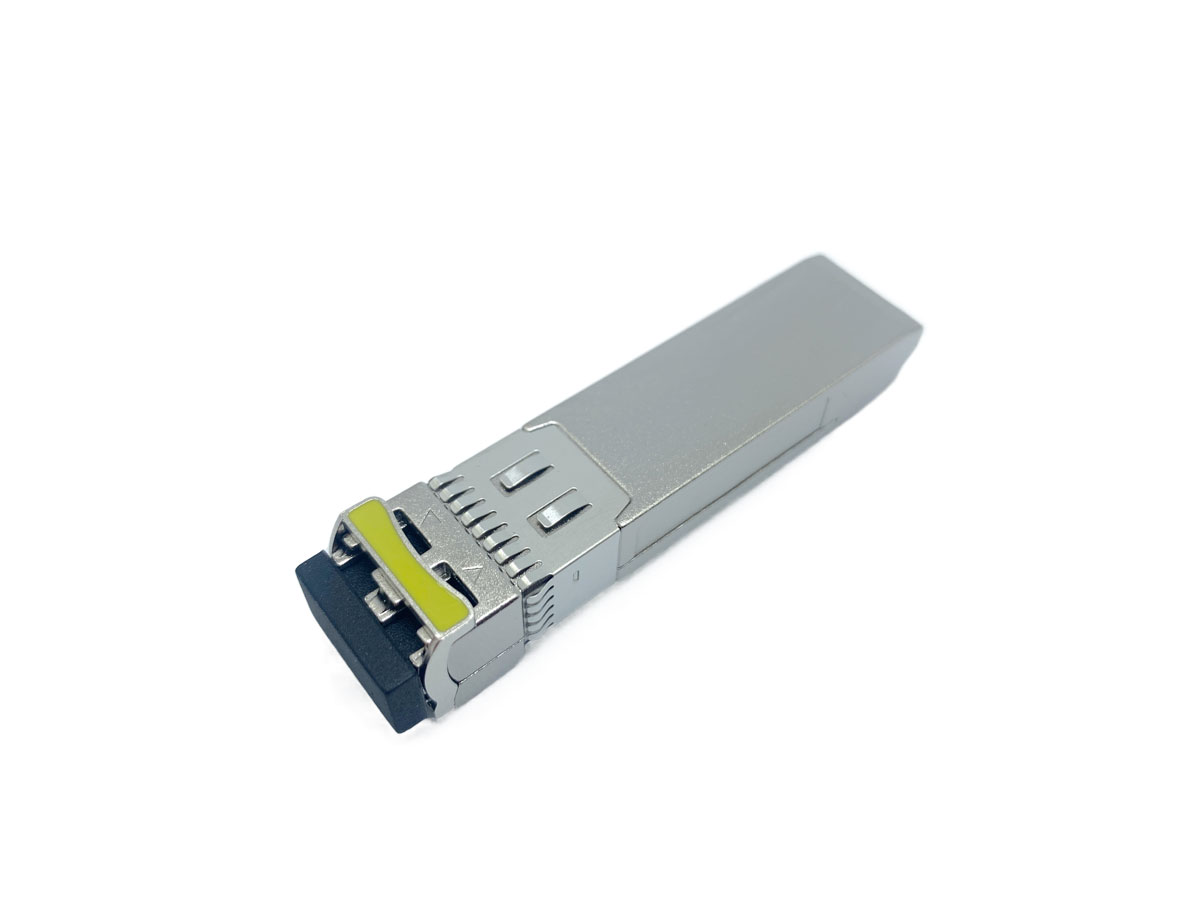

1. The CWDM optical module has 18 channel wavelengths (1270-1610nm), and each channel has a wavelength interval of 20nm. The color of the pull ring varies with the wavelength.
2. This solution can effectively improve the utilization rate of optical fiber resources, saving optical fiber resources.
3. Low cost WDM transmission technology for metropolitan area network access layer, suitable for telecom field.
Features
● Supports 9.95 to 11.5Gb/s bit rates
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption < 1W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature: Commerical: 0 to 70 °C Industrial: -40 to 85 °C
Parameter
| 10G SFP+ CWDM Optical Transceivers |
| Part Number |
CWDM-SFP-1390-10 |
| Trustnuo Part Number |
TNSCXX1XL-CD104 (XX: 1350/1370/1390/1410/1430/1450nm) |
| DESCRIPTION |
10G CWDM 10KM |
| Data Rate (Mbps) |
10G |
| Wavelength (nm) |
1350~1450 |
| Distance |
10KM |
| Optical Power (dBm) |
-3~+5 |
| Source |
CWDM DFB |
| Sensitivity (dBm) |
<-14.4 |
| Receiver |
PIN |
| Connector type |
LC/PC |
